High Speed Dynamic Weighing System Without Drainage & 0.5-105km/Hr

Zhengzhou Hengliang Tech Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

High Speed Dynamic Weighing System Without Drainage & 0.5-105km/Hr

Brand Name : Hengliang

Model Number : ZQS-40-SY

Certification : ISO

Place of Origin : Zhenghou`China

MOQ : 1 SET

Price : USD 20000-35000/SET

Payment Terms : T/T

Supply Ability : 30 SET/Month

Delivery Time : 5~7days

Packaging Details : Wooden box

Type : WIM System

Power : AC 220V

Error : 3%~10%

Speed : 0.5~105km/h

Axle load : 40T (single axle)

Single axle max overload : 60T

MTBF : ≥20000h

Temperature : -45~+80℃

Contact Now

High Speed Dynamic Weighing System Without Drainage & 0.5-105km/H

Product Description
  • Effective dynamic testing, wider speed range
    It with great rigidity, no deformation under load, with high frequency response, can accurately measure the rapidly changing dynamic loads. The speed range of effective vehicle pass through is 5~200km/h, able to ensure the same weighing accuracy even when the speed change.
  • Wider range of temperature adaptation
    Rinse temperature coefficient is only 0.02%, temperature changes little effect weighing accuracy, and no need calibration due to season and temperature changes, can still ensure measurement accuracy in a variety of harsh environment, saving time and effort.

Product Parameters

Weighing accuracy 90%~97%
Single axle load 40Ton
Max Load 60Ton
Speed 0.5~105km/h;
Speed error ≤±1km/h
Wheelbase error ≤±100mm
Working voltage AC 220V 50Hz
Output information Speed, total weight, axle load, axle number, wheelbase, vehicle type and passing time
Maximum number of lanes 8 lanes
Data storage It can store up to 10000 pieces of vehicle information data
data interface RJ485
work environment -45℃~80℃,0~95%
Confidence ≥95%

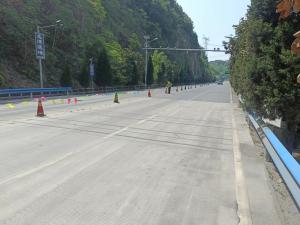

Project Case

High Speed Dynamic Weighing System Without Drainage & 0.5-105km/Hr
